MIDDLEWARE SERVICE TRANSLATOR
JSON TO ISO8583
USING SPRING BOOT JPOS

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter</artifactId>
</dependency>

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-web</artifactId>
</dependency>


<dependency>
    <groupId>org.jpos.ee</groupId>
    <artifactId>jposee-qrest</artifactId>
    <version>2.2.7</version>
</dependency>


<dependency>
    <groupId>io.netty</groupId>
    <artifactId>netty-codec-http</artifactId>
    <version>4.1.111.Final</version>
</dependency>


<dependency>
    <groupId>org.jpos</groupId>
    <artifactId>jpos</artifactId>
    <version>2.1.7</version>
</dependency>


<dependency>
    <groupId>org.freemarker</groupId>
    <artifactId>freemarker</artifactId>
    <version>2.3.31</version>
</dependency>

<dependency>
    <groupId>org.apache.commons</groupId>
    <artifactId>commons-lang3</artifactId>
    <version>3.12.0</version>
</dependency>


<dependency>
    <groupId>com.github.fge</groupId>
    <artifactId>jackson-coreutils</artifactId>
    <version>1.8</version>
</dependency>


<dependency>
    <groupId>com.github.java-json-tools</groupId>
    <artifactId>json-schema-validator</artifactId>
    <version>2.2.14</version>
</dependency>


<dependency>
    <groupId>org.osgi</groupId>
    <artifactId>org.osgi.core</artifactId>
    <version>6.0.0</version>
</dependency>

<dependency>
    <groupId>org.projectlombok</groupId>
    <artifactId>lombok</artifactId>
    <optional>true</optional>
</dependency>

<isomsg direction="outgoing">
  <field id="0" value="0800"/>
    <field id="7" value="0801041229"/>
    <field id="11" value="000001"/>
    <field id="12" value="041229"/>
    <field id="13" value="0801"/>
    <field id="70" value="301"/>
</isomsg>

{
  "$schema": "http://json-schema.org/draft-04/schema#",
  "title": "Fundtransfer Request Base Schema",
  "type": "object",
  "allOf": [{ "$ref": "file:cfg/check/common-request.schema.json" }],
  "properties": {
  },
  "required": [
  ]
}

<#import "common-utils" as commonUtils />
{
  "status": "${rc.status}",
  "message": "${rc.description}",
  "responseCode": "${(isoresp.bit39)!}"
}

<#import "common-utils" as commonUtils />
{
  "status": "UP"
}

<#function substr str startIdx endIdx defaultValue>
  <#local startZeroBased = startIdx-1>
  <#if str?has_content && str?length gte startZeroBased>
      <#return str[startZeroBased..*endIdx]?trim>
    </#if>
    <#return defaultValue>
</#function>

<#function truncate str startIdx len defaultValue>
  <#if str?has_content>
    <#local expectedStrLength = startIdx+len-1>
    <#if str?length gte expectedStrLength>
      <#return str?substring(startIdx-1, expectedStrLength)?trim>
    <#elseif str?length gte startIdx>
      <#return str?substring(startIdx-1, str?length)?trim>
    </#if>
  </#if>

  <#return defaultValue>
</#function>

<#function truncateUntrim str startIdx len defaultValue>
  <#if str?has_content>
    <#local expectedStrLength = startIdx+len-1>
    <#if str?length gte expectedStrLength>
      <#return str?substring(startIdx-1, expectedStrLength)>
    <#elseif str?length gte startIdx>
      <#return str?substring(startIdx-1, str?length)>
    </#if>
  </#if>

  <#return defaultValue>
</#function>

<#function truncateRest str startIdx defaultValue>
  <#if str?has_content && (str?length) gte startIdx>
    <#return str?substring(startIdx-1, str?length)?trim>
  </#if>

  <#return defaultValue>
</#function>

<#function addDecimal amt padLen>
  <#local len = padLen-2>
  <#return (amt?left_pad(len, '0')+'00')!>
</#function>

<#function removeDecimal amt>
  <#return (amt?number?remove_ending("00"))!>
</#function>

<#function reFormatDate dateStr fromPattern toPattern>
  <#return (dateStr?date(fromPattern)?string(toPattern))!>
</#function>

<#function reFormatDateTime dateTimeStr toPattern>
  <#return (dateStr?datetime("yyyy-MM-dd'T'HH:mm:ss.SSS'Z'")?string(toPattern))!>
</#function>

<#function addZero amt len>
  <#return (amt?left_pad(len, '0'))!>
</#function>

<#function addSpace amt len>
  <#return (amt?right_pad(len))!>
</#function>

<#function removeLeadingZeros val>
  <#return (val?matches("^0+(?!$)")) >
</#function>

{
  "id": "https://ist.id/schemas#common",
  "$schema": "http://json-schema.org/draft-04/schema#",
  "title": "Common JSON-Request Schema",
  "type": "object",
  "properties": {
    "systemTraceAuditNumber": {
      "type": "integer",
      "minimum": 1,
      "maximum": 999999
    },
    "terminalId": {
      "type": "string",
      "minLength": 1,
      "maxLength": 16
    },
    "identificationCode": {
      "type": "string"
    },
    "terminalOwner": {
      "type": "string"
    },
    "terminalCity": {
      "type": "string"
    },
    "terminalState": {
      "type": "string"
    },
    "terminalCountry": {
      "type": "string"
    },
    "retrievalReferenceNumber": {
      "type": "string",
      "minLength": 1,
      "maxLength": 12
    },
    "localDateTime": {
      "type": "string",
      "format": "date-time"
    }
  },
  "required": [
    "systemTraceAuditNumber",
    "terminalId",
    "identificationCode",
    "terminalOwner",
    "terminalCity",
    "terminalState",
    "terminalCountry",
    "retrievalReferenceNumber",
    "localDateTime"
  ]
}

<isomsg direction="outgoing">
<#macro commonBit>
  <field id="0" value="0200" />
  <field id="2" value="${jsonreq.primaryAccountNumber?left_pad(19, '0')}" />
  <field id="4" value="${(jsonreq.trxAmount!'0')?left_pad(10, '0')+'00'}" />
  <field id="7" value="${jsonreq.localDateTime?datetime("yyyy-MM-dd'T'HH:mm:ss.SSS'Z'")?string('MMddHHmmss')}" />
  <field id="11" value="${jsonreq.systemTraceAuditNumber!}" />
  <field id="12" value="${jsonreq.localDateTime?datetime("yyyy-MM-dd'T'HH:mm:ss.SSS'Z'")?string('HHmmss')}" />
  <field id="13" value="${jsonreq.localDateTime?datetime("yyyy-MM-dd'T'HH:mm:ss.SSS'Z'")?string('MMdd')}" />
  <field id="14" value="${jsonreq.localDateTime?datetime("yyyy-MM-dd'T'HH:mm:ss.SSS'Z'")?string('MMdd')}" />
  <field id="15" value="${jsonreq.localDateTime?datetime("yyyy-MM-dd'T'HH:mm:ss.SSS'Z'")?string('MMdd')}" />
  <field id="30" value="${(jsonreq.adminFee!'0')?left_pad(7, '0')+'00'}" />
  <field id="32" value="${jsonreq.acquiringInstitutionId!}" />
  <field id="37" value="${jsonreq.retrievalReferenceNumber!}" />
  <field id="41" value="${jsonreq.terminalId!}" />
  <field id="42" value="${jsonreq.identificationCode!}" />
  <isomsg id="43">
    <field id="1" value="${jsonreq.terminalOwner?right_pad(22)}" />
    <field id="2" value="${jsonreq.terminalCity?right_pad(13)}" />
    <field id="3" value="${jsonreq.terminalState?right_pad(3)}" />
    <field id="4" value="${jsonreq.terminalCountry?right_pad(2)}" />
  </isomsg>
  <field id="49" value="${jsonreq.currencyCode!}" />
  <isomsg id="62">
    <field id="1" value="${jsonreq.issuerCode?right_pad(3)}" />
    <field id="2" value="${jsonreq.acquirerCode?right_pad(3)}" />
    <field id="3" value="${jsonreq.beneficiaryCode?right_pad(3)}" />
  </isomsg>
  <field id="56" value="${jsonreq.phoneNo}" />
  <field id="102" value="${jsonreq.fromAccountNumber?left_pad(19, '0')}" />
</#macro>
</isomsg>

<#import "base" as baseMsg />
<isomsg>
  <@baseMsg.commonBit />
  <isomsg id="3">
    <field id="1" value="30" />
    <field id="2" value="${jsonreq.accountType}" />
    <field id="3" value="00" />
  </isomsg>
  <isomsg id="48">
    <field id="1" value="${jsonreq.accountNumber?right_pad(20)}" />
    <field id="2" value="${jsonreq.transactionId?right_pad(10)}" />
  </isomsg>
</isomsg>

{
  "$schema": "http://json-schema.org/draft-04/schema#",
  "id": "/check",
  "title": "Get test Request Base Schema",
  "type": "object",
  "allOf": [{ "$ref": "file:cfg/check/common-request.schema.json" }],
  "properties": {
    "accountNumber": {
      "type": "string"
    },
    "transactionId": {
      "type": "string"
    },
    "accountType": {
      "type": "integer",
      "enum": [10, 20]
    }
  },
  "required": [
    "accountNumber",
    "transactionId",
    "accountType"
  ]
}

<#import "common-utils" as commonUtils />
{
  "status": "${rc.status}",
  "message": "${rc.description}",
  "responseCode": "${(isoresp.bit39)!}",
  "data": {
      "accountNumber": "${(commonUtils.truncate((isoresp.bit48)!, 1, 3, '')?trim)!}"
  }
}

<?xml version="1.0" encoding="UTF-8"?>
<logger name="Q2" class="org.jpos.q2.qbean.LoggerAdaptor">
    <property name="redirect" value="stdout, stderr" />

    <log-listener class="org.jpos.util.SimpleLogListener" />

    <log-listener class="org.jpos.util.BufferedLogListener">
        <property name="max-size" value="100" />
        <property name="name" value="logger.Q2.buffered" />
    </log-listener>

    <log-listener class="org.jpos.util.DailyLogListener">
        <property name="window" value="86400" />
        <property name="prefix" value="log/server" />
        <property name="suffix" value=".log"/>
        <property name="date-format" value="-yyyy-MM-dd-HH"/>
        <property name="compression-format" value="gzip"/>
    </log-listener>
</logger>

<qbean name="msgconfig" logger="Q2" realm="msg-config" class="id.co.pandz.rest_jposs.qBean.QMessageConfigurator">
  <libraries name="base">
    <library name="base" template="cfg/check/base-isomsg.xml.ftl" />
    <library name="common-utils" template="cfg/common-utils.ftl" />
  </libraries>
  <messages name="general">
    <message code="check"
              request-schema="cfg/check/check-request.schema.json"
              iso-request="cfg/check/check.xml.ftl"
              response-json="cfg/check/check-response.json.ftl" />
  </messages>
  <messages name="health">
    <message code="healthcheck"
              iso-request="cfg/general/base-isomsg.xml.ftl"
              response-json="cfg/health/response.json.ftl" />
  </messages>
</qbean>

<channel-adaptor name='iso-channel' class="org.jpos.q2.iso.ChannelAdaptor" logger="Q2">
    <channel class="org.jpos.iso.channel.ASCIIChannel" packager="org.jpos.iso.packager.GenericPackager" logger="Q2">
        <property name="packager-config" value="cfg/iso87ascii.xml" />
        <property name="host" value="127.0.0.1" />
        <property name="port" value="10001" />
        <property name="connect-timeout" value="5000" />
    </channel>
    <in>iso-client-send</in>
    <out>iso-client-receive</out>
    <reconnect-delay>10000</reconnect-delay>
</channel-adaptor>

<mux name="iso.server" class="org.jpos.q2.iso.QMUX" logger="Q2">
    <in>iso-client-receive</in>
    <out>iso-client-send</out>
    <unhandled>iso-client-unhandled</unhandled>
    <ready>iso-channel.ready</ready>
</mux>

<qbean name="rcmapper" logger="Q2" realm="rc-mapping" class="id.co.pandz.rest_jposs.qBean.QRcMapper">
    <response-code source-rc="00" target-rc="00" status="success" description="Transaction Success" />
    <response-code source-rc="04" target-rc="04" status="failed" description="Salah PIN ATM" />
    <response-code source-rc="09" target-rc="09" status="failed" description="Kartu Tidak Ditemukan" />
    <response-code source-rc="10" target-rc="10" status="failed" description="General Error from HSM" />
    <response-code source-rc="12" target-rc="12" status="failed" description="Invalid Account" />
</qbean>

public class GeneralConstant {
  public static final String LOG_LEVEL = "LOG_LEVEL";
  public static final String ENDPOINT = "ENDPOINT";
  public static final String JSON_NODE = "JSON_NODE";
  public static final String ISO_REQUEST = "ISO_REQUEST";
  public static final String ISO_RESPONSE = "ISO_RESPONSE";
  public static final String DETAIL_RC = "DETAIL_RC";
}

public enum LogLevel {
  DEBUG(1),
  INFO(2),
  WARN(3),
  ERROR(4);

  public final Integer level;
  LogLevel(int level) {
      this.level = level;
  }
}

public enum Status {
  SUCCESS,
  PENDING,
  FAILED
}

@Data
@Builder
@NoArgsConstructor
@AllArgsConstructor
public class ResponseCodeDetail {
    private String sourceRc;
    private String targetRc;
    private Status status;
    private String description;
}

@Data
@Builder
@NoArgsConstructor
public class ResponseDto<T> {
  private String status;
  private String message;
  private String responseCode;
  private T data;

  public ResponseDto(String status, String message) {
    this(status, message, null, null);
  }

  public ResponseDto(String status, String message, T data) {
    this(status, message, null, data);
  }

  public ResponseDto(String status, String message, String rc) {
    this(status, message, rc, null);
  }

  public ResponseDto(String status, String message, String rc, T data) {
    this.status = status;
    this.message = message;
    this.data = data;
    this.responseCode = rc;
  }
}

public class JsonUtil {
  private static ObjectMapper objectMapper;

  static {
    objectMapper = new ObjectMapper();
  }
  public static Map<String, Object> convertValueToMap(JsonNode jn) {
    return objectMapper.convertValue(jn, new TypeReference<Map<String, Object>>(){});
  }
}

public class ISOLogger {
    public static void logDebug(Context ctx, String message) {
      log(ctx, message, null, LogLevel.DEBUG);
    }

    public static void logDebug(Context ctx, String message, String tag) {
      log(ctx, message, tag, LogLevel.DEBUG);
    }

    public static void logInfo(Context ctx, String message) {
      log(ctx, message, null, LogLevel.INFO);
    }

    public static void logInfo(Context ctx, String message, String tag) {
      log(ctx, message, tag, LogLevel.INFO);
    }

    public static void logWarn(Context ctx, String message) {
      log(ctx, message, null, LogLevel.WARN);
    }

    public static void logWarn(Context ctx, String message, String tag) {
      log(ctx, message, tag, LogLevel.WARN);
    }

    public static void logError(Context ctx, String message) {
      logError(ctx, message, null);
    }

    public static void logError(Context ctx, String message, Exception ex) {
      log(ctx, message, null, LogLevel.ERROR);
      if(ex != null)
        ctx.log(ex);
    }

    public static void logError(Context ctx, String message, String tag, Exception ex) {
      log(ctx, message, tag, LogLevel.ERROR);
      if(ex != null)
        ctx.log(ex);
    }

    private static void log(Context ctx, String message, String tag, LogLevel printLogLevel) {
      String configuredLogLevelStr =  (String) ctx.get(GeneralConstant.LOG_LEVEL, LogLevel.INFO.toString());
      LogLevel configuredLogLevel = LogLevel.valueOf(configuredLogLevelStr);
      if(configuredLogLevel.level <= printLogLevel.level) {
        LogEvent logEvent = ctx.getLogEvent();
        if(StringUtils.isNotBlank(tag))
          logEvent.addMessage(tag, LocalDateTime.now() + " ["+printLogLevel+"] "+message);
        else
          logEvent.addMessage(LocalDateTime.now() + " ["+printLogLevel+"] "+message);
      }
    }
}

public class MessageUtil {
    private static ISOPackager xmlPackager;

    static {
      try {
        xmlPackager = new XMLPackager();
      } catch (ISOException e) {
        e.printStackTrace();
      }
    }
    private static Response buildFailedResponse(String message, String rc) {
      return new Response(HttpResponseStatus.OK,
              new ResponseDto<>>("failed", message, rc));
    }

    private static Response buildPendingResponse(String message) {
      return new Response(HttpResponseStatus.OK,
              new ResponseDto<>("pending", message));
    }

    private static <T> Response buildSuccessResponse(String message, T data) {
      return new Response(HttpResponseStatus.OK, new ResponseDto<T>("success", message, "00", data));
    }

    public static void setFailedResponse(Context ctx, String message, String rc) {
      ctx.put(org.jpos.qrest.Constants.RESPONSE, MessageUtil.buildFailedResponse(message, rc));
    }

    public static void setPendingResponse(Context ctx, String message) {
      ctx.put(org.jpos.qrest.Constants.RESPONSE, MessageUtil.buildPendingResponse(message));
    }

    public static <T> void setSuccessResponse(Context ctx, String message, T data) {
      ctx.put(org.jpos.qrest.Constants.RESPONSE, MessageUtil.buildSuccessResponse(message, data));
    }

    public static <T> Response buildResponse(ResponseCodeDetail rcDetail) {
      ResponseDto<T> response = new ResponseDto<T>();
      response.setStatus(rcDetail.getStatus().name().toLowerCase());
      response.setMessage(rcDetail.getDescription());
      response.setResponseCode(rcDetail.getTargetRc());
      return new Response(HttpResponseStatus.OK, new ResponseDto<T>());
    }

    public static String toTrxAmount(Long amt, int zeroPadLen) {
      Long amtWithDecimal = amt * 100;
      return ISOUtil.zeropad(amtWithDecimal, zeroPadLen);
    }

    /**
     *
     * @param trxAmount
     * @return
     */
    public static Long fromTrxAmount(String trxAmount) {
      String amtWithoutDecimal = StringUtils.substring(trxAmount, 0, trxAmount.length()-2);
      return Long.valueOf(amtWithoutDecimal);
    }

    public static Object getContextValue(String value, Context context) throws Exception
    {
      Object formatedValue = StringUtils.defaultString(value);
      try {
        if (StringUtils.startsWith(value, "JSON_REQ{")) {
          formatedValue = getJsonValue(value, context);

        }
        else if (StringUtils.startsWith(value, "RC_MAP{")) {
          String params = StringUtils.substringBetween(value, "RC_MAP{", "}");
          ResponseCodeDetail detailRc = context.get(GeneralConstant.DETAIL_RC);
          if (detailRc != null) {
              if ("status".equals(params)) {
                  formatedValue = detailRc.getStatus().toString().toLowerCase();
              } else if ("description".equals(params)) {
                  formatedValue = getContextValue(detailRc.getDescription(), context);
              }
          } else {
              formatedValue = "";
          }

        } else if (StringUtils.startsWith(value, "PATH_PARAM{")) {
          Map<String, String> pathParams = context.get(Constants.PATHPARAMS);
          String paramName = StringUtils.substringBetween(value, "PATH_PARAM{", "}");
          formatedValue = pathParams.get(paramName);

        }
        else if(StringUtils.startsWith(value, "URL_SEGMENT{")) {
          String endpoint = context.get(GeneralConstant.ENDPOINT);
          String paramName = StringUtils.substringBetween(value, "URL_SEGMENT{", "}");
          URI uri = new URI(endpoint);
          String[] segments = uri.getPath().split("/");
          if ("first".equals(paramName)) {
            formatedValue = segments[0];
          } else if ("last".equals(paramName)) {
            formatedValue = segments[segments.length-1];
          } else {
            if (StringUtils.isNumeric(paramName)) {
              Integer urlSegment = Integer.valueOf(paramName);
              formatedValue = segments[urlSegment];
            }
            else {
              formatedValue = null;
            }
          }
        }
      } finally {
        ISOLogger.logDebug(context, "GET BIT VALUE FOR [" + value + "]\tRESULT [" + formatedValue + "]");
      }
      return formatedValue;
    }

    public static String getIsoValue(String value, Context context) {
      ISOMsg isoResp = context.get(GeneralConstant.ISO_RESPONSE);
      if(isoResp != null) {
        String fieldNo = StringUtils.substringBetween(value, "ISO_RESP{", "}");
        if(StringUtils.isNotBlank(fieldNo))
          return isoResp.getString(fieldNo);
      }
      return value;
    }

    private static Object getJsonValue(String value, Context context) {
      JsonNode jsonNode = context.get(GeneralConstant.JSON_NODE);
      String fieldName = StringUtils.substringBetween(value, "JSON_REQ{", "}").trim();
      JsonNode jsonValue = (fieldName.startsWith("/")) ? jsonNode.at(fieldName) : jsonNode.findValue(fieldName);

      if(jsonValue != null && !(jsonValue instanceof NullNode)) {
        if(jsonValue instanceof NumericNode)
          return jsonValue.asLong();
        else if(jsonValue instanceof IntNode)
          return jsonValue.asInt();
        else
          return jsonValue.asText();
      }
      return "";
    }

    public static ISOMsg xml2ISOMsg(byte[] contentBytes) throws ISOException {
      ISOMsg templateReqMsg = new ISOMsg();
      templateReqMsg.setPackager(xmlPackager);
      templateReqMsg.unpack(contentBytes);
      return templateReqMsg;
    }
}

public class MessageTemplateLoader implements TemplateLoader {
  private Map<String, File> templateMap = new HashMap<String, File>();

  public void putTemplate(String name, File file) {
    this.templateMap.put(name, file);
  }

  @Override
  public Object findTemplateSource(String name) throws IOException {
    return this.templateMap.get(name);
  }

  @Override
  public long getLastModified(Object templateSource) {
    return (AccessController.doPrivileged(new PrivilegedAction<Long>() {
      @Override
      public Long run() {
        return Long.valueOf(((File) templateSource).lastModified());
      }
    })).longValue();
  }

  @Override
  public Reader getReader(Object templateSource, String encoding) throws IOException {
    try {
      return AccessController.doPrivileged(new PrivilegedExceptionAction<Reader>() {
        @Override
        public Reader run() throws IOException {
          if (!(templateSource instanceof File)) {
            throw new IllegalArgumentException(
                    "templateSource wasn't a File, but a: " +
                            templateSource.getClass().getName());
          }
          return new InputStreamReader(new FileInputStream((File) templateSource), encoding);
        }
      });
    } catch (PrivilegedActionException e) {
      throw (IOException) e.getException();
    }
  }

  @Override
  public void closeTemplateSource(Object templateSource) throws IOException {
    // Do Nothing
  }
}

public interface QMessageConfiguratorMBean extends QBeanSupportMBean {
}

public class QMessageConfigurator extends QBeanSupport implements QMessageConfiguratorMBean {
  public static final String PREFIX = "msgcfg.";
  public static final String ISO_REQUEST = "iso-request";
  public static final String RESPONSE_JSON = "response-json";
  private freemarker.template.Configuration fcfg;
  private MessageTemplateLoader messageTemplateLoader;
  private Map<String, JsonSchema> requestSchemaMap = new HashMap<String, JsonSchema>();

  public JsonSchema getRequestSchema(String type, String code) {
    return requestSchemaMap.get(type+code);
  }

  public ISOMsg processISORequest(String type, String code, Context ctx) throws Exception {
    String renderedMsgStr = process(StringUtils.defaultString(type)+code+ISO_REQUEST, ctx);
    return MessageUtil.xml2ISOMsg(renderedMsgStr.getBytes());
  }

  public String processJSONResponse(String type, String code, Context ctx) throws Exception {
    return process(StringUtils.defaultString(type)+code+RESPONSE_JSON, ctx);
  }

  protected String process(String name, Context ctx) throws Exception {
    ISOLogger.logInfo(ctx, "FIND TEMPLATE: " + name);
    Template template = fcfg.getTemplate(name);
    StringWriter sw = new StringWriter();
    try {
      template.process(getRenderContext(ctx), sw);
      return sw.toString();
    } catch (TemplateException e) {
      throw e;
    }
  }

  public Map<String,Object> getRenderContext (Context ctx) {
    Map<String,Object> rctx = ctx.get(RENDER_CONTEXT);
    if (rctx == null) {
        rctx = new HashMap<>();
        ctx.put (RENDER_CONTEXT, rctx);
    }
    return rctx;
  }

  @Override
  public void setName(String name) {
    NameRegistrar.register(PREFIX+name, this);
  }

  public static QMessageConfigurator getMessageConfigurator(String name) throws NameRegistrar.NotFoundException {
    return NameRegistrar.get(PREFIX+name);
  }

  @Override
  protected void startService() throws Exception {
    super.startService();
    this.messageTemplateLoader = new MessageTemplateLoader();
    this.fcfg = new Configuration(Configuration.VERSION_2_3_31);
    this.fcfg.setNumberFormat("computer");
    LogEvent logEvent = log.createInfo();

    logEvent.addMessage("[INFO] ", "Start Message Configuration");

    List<Element> librariesElmList = getPersist().getChildren("libraries");
    for (Element librariesElm : librariesElmList) {
      String librariesName = librariesElm.getAttributeValue("name");
      List<Element> libElmList = librariesElm.getChildren("library");
      for (Element msgElm : libElmList) {
        String nameVal = msgElm.getAttributeValue("name");
        String templateVal = msgElm.getAttributeValue("template");

        logEvent.addMessage("[INFO] ", "Name value: " + nameVal);
        logEvent.addMessage("[INFO] ", "Template value: " + templateVal);

        logEvent.addMessage(librariesName, "PROCESSING LIBRARY ["+nameVal+"] TEMPLATE ["+templateVal+"]");

        File libraryFile = new File(templateVal);
        if (!libraryFile.exists())
          throw new Exception("LIBRARY FILE NOT FOUND ["+templateVal+"]");
        this.messageTemplateLoader.putTemplate(nameVal, libraryFile);
      }
    }

    List<Element> messagesElmList = getPersist().getChildren("messages");
    for (Element messagesElm : messagesElmList) {
      String messagesName = messagesElm.getAttributeValue("name");
      List<Element> msgElmList = messagesElm.getChildren("message");

      for (Element msgElm : msgElmList) {
        String typeVal = msgElm.getAttributeValue("type", "");
        String codeVal = msgElm.getAttributeValue("code");
        String requestSchemaVal = msgElm.getAttributeValue("request-schema");
        String isoRequestVal = msgElm.getAttributeValue("iso-request");
        String responseJsonVal = msgElm.getAttributeValue("response-json");

        logEvent.addMessage(messagesName, "PROCESSING TEMPLATE ["+typeVal+"."+codeVal+"] "
                + "REQUEST-SCHEMA ["+requestSchemaVal+"] "
                + "ISO-REQUEST ["+isoRequestVal+"] "
                + "RESPONSE-JSON ["+responseJsonVal+"]");

        if(StringUtils.isAnyBlank(codeVal, isoRequestVal, responseJsonVal)) {
          throw new Exception("INVALID CONFIGURATION FOR "+messagesName +" ATTRIBUTE [code, iso-request, response-json] IS MANDATORY");
        }

        if (StringUtils.isNotBlank(requestSchemaVal)) {
          File requestSchemaFile = new File(requestSchemaVal);
          if (requestSchemaFile.exists()) {
            JsonNode nodeSchema = JsonLoader.fromFile(requestSchemaFile);
            JsonSchema jsonSchema = JsonSchemaFactory.byDefault().getJsonSchema(nodeSchema);
            requestSchemaMap.put(typeVal+codeVal, jsonSchema);
          }
        }

        File isoRequestFile = new File(isoRequestVal);
        if (!isoRequestFile.exists())
          throw new Exception("FILE NOT FOUND ["+isoRequestVal+"]");

        File responseJsonFile = new File(responseJsonVal);
        if (!responseJsonFile.exists())
          throw new Exception("FILE NOT FOUND ["+responseJsonVal+"]");

        this.messageTemplateLoader.putTemplate(typeVal+codeVal+ISO_REQUEST, isoRequestFile);
        this.messageTemplateLoader.putTemplate(typeVal+codeVal+RESPONSE_JSON, responseJsonFile);
      }
    }
    fcfg.setTemplateLoader(this.messageTemplateLoader);

    String name = getPersist().getAttributeValue("name");
    if(StringUtils.isNotBlank(name))
      setName(name);

    Logger.log(logEvent);
  }

  @Override
  protected void stopService() throws Exception {
    super.stopService();
    String name = getPersist().getAttributeValue("name");
    NameRegistrar.unregister(PREFIX+name);
  }
}

public interface QRcMapperMBean extends QBeanSupportMBean {
  ResponseCodeDetail getDetailRC(String sourceRc, Context ctx);
  boolean containsKey(String sourceRc);
}

public class QRcMapper extends QBeanSupport implements QRcMapperMBean {
  private Map<String, ResponseCodeDetail> rcMapping = new HashMap<String, ResponseCodeDetail>();

  @Override
  protected void startService() throws Exception {
    super.startService();

    List<Element> responseCodeElmList = getPersist().getChildren("response-code");
    for (Element responseCodeElm : responseCodeElmList) {
      String sourceRc = responseCodeElm.getAttributeValue("source-rc");
      String targetRc = responseCodeElm.getAttributeValue("target-rc");
      String status = responseCodeElm.getAttributeValue("status");
      String description = responseCodeElm.getAttributeValue("description");

      rcMapping.put(sourceRc, new ResponseCodeDetail(sourceRc, targetRc, Status.valueOf(status.toUpperCase()), description));
    }

    String name = getPersist().getAttributeValue("name");
    if(StringUtils.isNotBlank(name))
      setName(name);
  }

  @Override
  public void setName(String name) {
    NameRegistrar.register("rcmapper." + name, this);
  }

  @Override
  protected void stopService() throws Exception {
    super.stopService();
    String name = getPersist().getAttributeValue("name");
    NameRegistrar.unregister("rcmapper." + name);
  }

  public static QRcMapper getRcMapper(String name) {
    return (QRcMapper) NameRegistrar.get("rcmapper." + name, 3000l);
  }

  @Override
  public boolean containsKey(String sourceRc) {
    return rcMapping.containsKey(sourceRc);
  }

  @Override
  public ResponseCodeDetail getDetailRC(String sourceRc, Context ctx) {
    if(containsKey(sourceRc))
      return rcMapping.get(sourceRc);
    ISOLogger.logWarn(ctx, "RC MAPPING FOR [" + sourceRc + "] NOT FOUND");
    return ResponseCodeDetail.builder()
          .description("RC MAPPING FOR [" + sourceRc + "] NOT FOUND")
          .status(Status.FAILED)
          .targetRc(sourceRc)
          .build();
  }
}

public class ISOMsgBuilder implements TransactionParticipant, Configurable {
  private QMessageConfigurator messageConfigurator;
  private String code;
  private String type;

  @Override
  public int prepare(long id, Serializable context) {
    Context ctx = (Context) context;
    try {
      ISOLogger.logInfo(ctx, "CONSTRUCT ISOMSG START");
      String keyValue = (String) MessageUtil.getContextValue(this.code, ctx);
      ISOMsg isoMsg = messageConfigurator.processISORequest(this.type, keyValue, ctx);
      Map<String, Object> renderContext = messageConfigurator.getRenderContext(ctx);
      for (int i = 0; i <= isoMsg.getMaxField(); i++) {
          if (!isoMsg.hasField(i))
            continue;
          Object value = isoMsg.getValue(i);
          // update sub ISOMsg to flat String
          if (value instanceof ISOMsg) {
            ISOMsg subMsg = (ISOMsg) value;
            int maxFieldSubMsg = subMsg.getMaxField();
            StringBuilder sb = new StringBuilder();
            for (int j = 1; j <= maxFieldSubMsg; j++) {
              sb.append(subMsg.getString(j));
            }
            String valueStr = sb.toString();
            isoMsg.set(i, valueStr);
            renderContext.put("isoreq.bit"+i, valueStr);
          }
          else {
            renderContext.put("isoreq.bit"+i, value);
          }
      }
      ctx.put(GeneralConstant.ISO_REQUEST, isoMsg);
      return PREPARED;
    } catch (Exception e) {
      ISOLogger.logError(ctx, "ERROR CONSTRUCT ISOMSG", e);
      MessageUtil.setFailedResponse(ctx, e.getMessage(), null);

    } finally {
      ISOLogger.logInfo(ctx, "CONSTRUCT ISOMSG DONE");
    }
    return ABORTED;
  }

  @Override
  public void setConfiguration(Configuration cfg) throws ConfigurationException {
    try {
      this.code = cfg.get("code");
      this.type = cfg.get("type");
      this.messageConfigurator = QMessageConfigurator.getMessageConfigurator(cfg.get("messageConfigurator"));
    } catch (NameRegistrar.NotFoundException e) {
      throw new ConfigurationException(e);
    }
  }
}

public class JsonRequestValidator implements TransactionParticipant, Configurable {
    private QMessageConfigurator messageConfigurator;
    private String code;
    private String type;

    @Override
    public int prepare(long id, Serializable context) {
      Context ctx = (Context) context;
      try {
        String jsonRequest = ctx.getString(JSON_REQUEST.name());
        JsonNode node = JsonLoader.fromString(jsonRequest);
        String keyValue = (String) MessageUtil.getContextValue(this.code, ctx);
        ISOLogger.logInfo(ctx, "GET SCHEMA TYPE: " + this.type);
        ISOLogger.logInfo(ctx, "GET SCHEMA VALUE: " + keyValue);
        JsonSchema schema = messageConfigurator.getRequestSchema(this.type, keyValue);
        if(schema != null) {
//                ProcessingReport report = schema.validate(node);
//                if (!report.isSuccess()) {
//                    ctx.getResult().fail(ResultCode.BAD_REQUEST, Caller.info(), report.toString());
//                    ISOLogger.logError(ctx, report.toString());
//                    return ABORTED;
//                }
        }
        storeJsonRequestToRenderContext(node, ctx);
        ctx.put(GeneralConstant.JSON_NODE, node);
        return PREPARED;
      } catch (Exception e) {
        ISOLogger.logError(ctx, Caller.info(), e);
        ctx.getResult().fail(ResultCode.BAD_REQUEST, Caller.info(), e.toString());
      }
      return ABORTED;
    }

    private void storeJsonRequestToRenderContext(JsonNode node, Context ctx) {
      Map<String, Object> renderContext = messageConfigurator.getRenderContext(ctx);
      Map<String, Object> jsonReqContext = JsonUtil.convertValueToMap(node);

      renderContext.put("jsonreq", jsonReqContext);

      renderContext.put("endpoint", ctx.get(GeneralConstant.ENDPOINT));
      renderContext.put("pathparam", ctx.get(PATHPARAMS));
      renderContext.put("queryparam", ctx.get(QUERYPARAMS));
    }

    @Override
    public void setConfiguration(Configuration cfg) throws ConfigurationException {
      try {
        this.code = cfg.get("code");
        this.type = cfg.get("type");
        this.messageConfigurator = QMessageConfigurator.getMessageConfigurator(cfg.get("messageConfigurator"));
      } catch (NameRegistrar.NotFoundException e) {
        throw new ConfigurationException(e);
      }
    }
}

public class JsonResponseBuilder extends Log implements TransactionParticipant, Configurable {
  private QMessageConfigurator messageConfigurator;
  private String code;
  private String type;
  private String rcMapper;

  @Override
  public int prepare(long id, Serializable context) {
    Context ctx = (Context) context;
    try {
      ISOLogger.logInfo(ctx, "JSON RESPONSE BUILDER START");
      String keyValue = (String) MessageUtil.getContextValue(this.code, ctx);
      String jsonRespString = messageConfigurator.processJSONResponse(type, keyValue, ctx);
      ISOLogger.logDebug(ctx, jsonRespString);
      ctx.put(Constants.RESPONSE, new Response(HttpResponseStatus.OK, jsonRespString));
    } catch (Exception e) {
      ISOLogger.logError(ctx, "JSON RESPONSE BUILDER ERROR", e);
      ISOMsg isoRespMsg = ctx.get(GeneralConstant.ISO_RESPONSE);
      if (isoRespMsg != null) {
        // Already got response from esb but there is exception when build json response
        QRcMapper qrcMapper = QRcMapper.getRcMapper(rcMapper);
        ResponseCodeDetail detailRC = qrcMapper.getDetailRC(isoRespMsg.getString(39), ctx);
        ctx.put(org.jpos.qrest.Constants.RESPONSE, MessageUtil.buildResponse(detailRC));
      }

    } finally {
      ISOLogger.logInfo(ctx, "JSON RESPONSE BUILDER DONE");
    }
    return PREPARED;
  }

  @Override
  public void setConfiguration(Configuration cfg) throws ConfigurationException {
    try {
      this.code = cfg.get("code");
      this.type = cfg.get("type");
      this.messageConfigurator = QMessageConfigurator.getMessageConfigurator(cfg.get("messageConfigurator"));
      this.rcMapper = cfg.get("rcMapper", "rcmapper");
    } catch (NameRegistrar.NotFoundException e) {
      throw new ConfigurationException(e);
    }
  }
}

public class LogPrinterParticipant implements AbortParticipant {
  @Override
  public int prepare(long id, Serializable o) {
    return PREPARED | READONLY;
  }

  @Override
  public void commit(long id, Serializable context) {
    Context ctx = (Context) context;
    Logger.log(ctx.getLogEvent());
  }

  @Override
  public void abort(long id, Serializable context) {
    Context ctx = (Context) context;
    Logger.log(ctx.getLogEvent());
  }
}

public class SendIsoRequest extends Log implements TransactionParticipant, Configurable {
  private MUX mux;
  private Long timeout;
  private String rcMapper;

  @Override
  public int prepare(long id, Serializable context) {
    Context ctx = (Context) context;
    QRcMapper qrcMapper = QRcMapper.getRcMapper(rcMapper);
    Map<String, String> rcMap = new HashMap<String, String>();
    Map<String,Object> renderContext = ctx.get(RENDER_CONTEXT);

    try {
      ISOLogger.logInfo(ctx, "SEND ISO REQUEST START");
      ISOMsg reqMsg = ctx.get(GeneralConstant.ISO_REQUEST);
      ISOLogger.logInfo(ctx, "SEND ISO REQUEST SENT");
      ISOMsg respMsg = mux.request(reqMsg, timeout);
      ISOLogger.logInfo(ctx, "SEND ISO RESPONSE RECEIVED");

      if (respMsg != null) {
        ctx.put(GeneralConstant.ISO_RESPONSE, respMsg);

        Map<String, String> isorespMap = getIsoRespContext(renderContext);
        int maxField = respMsg.getMaxField();
        for (int i = 1; i <= maxField; i++) {
          if(!respMsg.hasField(i))
              continue;
          String bitValue = respMsg.getString(i);
          isorespMap.put("bit" + i, bitValue);
        }

        ResponseCodeDetail detailRC = qrcMapper.getDetailRC(respMsg.getString(39), ctx);
        rcMap.put("status", detailRC.getStatus().name().toLowerCase());
        rcMap.put("description", MessageUtil.getIsoValue(detailRC.getDescription(), ctx));

        renderContext.put("rc", rcMap);
        renderContext.put("isoresp", isorespMap);
      } else {
        rcMap.put("status", "pending");
        rcMap.put("description", "Timeout");
      }

    } catch (Exception e) {
      rcMap.put("status", "failed");
      rcMap.put("description", "Internal Error");
      ISOLogger.logError(ctx, "SEND ISO REQUEST ERROR", e);

    } finally {
      ISOLogger.logInfo(ctx, "SEND ISO REQUEST DONE");
    }

    renderContext.put("rc", rcMap);
    return PREPARED;
  }

  @Override
  public void setConfiguration(Configuration cfg) throws ConfigurationException {
    try {
      String muxName = cfg.get("muxName", "esb");
      Long timeout = cfg.getLong("timeout", 60000);
      this.rcMapper = cfg.get("rcMapper", "rcmapper");
      this.mux = QMUX.getMUX(muxName);
      this.timeout = timeout;
    } catch (NameRegistrar.NotFoundException e) {
      throw new ConfigurationException(e);
    }
  }

  @SuppressWarnings("unchecked")
  private Map<String, String> getIsoRespContext(Map<String, Object> renderContext) {
    return (Map<String, String>) renderContext.getOrDefault("isoresp", new HashMap<String, String>());
  }
}

public class RequestListener implements ISORequestListener, Configurable {
  private String queueName;
  private Space<String, Context> sp;
  private Long timeout;

  @Override
  public boolean process(ISOSource isoSrc, ISOMsg isoMsg) {
    Context ctx = new Context();
    ctx.put(ContextConstants.REQUEST.toString(), isoMsg);
    ctx.put(ContextConstants.SOURCE.toString(), isoSrc);
    sp.out(queueName, ctx, timeout);
    return false;
  }

  @Override
  @SuppressWarnings("unchecked")
  public void setConfiguration(Configuration cfg)
  {
    queueName = cfg.get("queue");
    timeout = cfg.getLong("timeout");
    sp =  SpaceFactory.getSpace(cfg.get("space"));
  }
}

public class RestServer extends org.jpos.qrest.RestServer {
  private String logLevel;

  @Override
  public void queue(FullHttpRequest request, Context ctx) {
    ctx.put(GeneralConstant.LOG_LEVEL, logLevel.toUpperCase());
    super.queue(request, ctx);
  }

  @Override
  public void setConfiguration(Configuration cfg) throws ConfigurationException {
    super.setConfiguration(cfg);
    try {
      logLevel = cfg.get("logLevel", "info");
    } catch (Exception e) {
      getLog().error(e);
    }
  }
}

public class Router implements GroupSelector, XmlConfigurable {
  private Map<String, List<Route<String>>> routes = new HashMap<>();

  @Override
  public int prepare(long id, Serializable context) {
    return PREPARED | NO_JOIN | READONLY;
  }

  @SuppressWarnings("rawtypes")
  @Override
  public String select(long id, Serializable context) {
    Context ctx = (Context) context;
    FullHttpRequest request = (FullHttpRequest) ctx.get(REQUEST);
    ISOLogger.logInfo(ctx, "Method: " + request.method().name());
    ISOLogger.logDebug(ctx, request.content().toString(CharsetUtil.UTF_8));
    List<Route<String>> routesByMethod = routes.get(request.method().name());
    QueryStringDecoder decoder = new QueryStringDecoder(request.uri());
    if (!decoder.parameters().isEmpty())
        ctx.put(QUERYPARAMS, decoder.parameters());

    if (routesByMethod != null) {
      Optional<Route<String>> route = routesByMethod.stream().filter(r -> r.matches(decoder.uri())).findFirst();
      String path = URI.create(decoder.uri()).getPath();
      ctx.put(GeneralConstant.ENDPOINT, path);
      if (route.isPresent()) {
        Map m = route.get().parameters(path);
        if (m != null)
          ctx.put(PATHPARAMS, m);
        ISOLogger.logInfo(ctx, "Routes: " + path);
        ctx.getLogEvent().setTag(path.substring(1).replace('/', '_'));
        return route.get().apply(route.get(), path);
      }
    }
    return null;
  }

  @Override
  public void setConfiguration(Element e) throws ConfigurationException {
    try {
      for (Element r : e.getChildren("route")) {
        routes.computeIfAbsent(
          r.getAttributeValue("method"),
          k -> new ArrayList<>()).add(
          new Route<>(
            r.getAttributeValue("path"),
            r.getAttributeValue("method"),
            (t, s) -> r.getAttributeValue("name"))
        );
      }
    } catch (Throwable t) {
      throw new ConfigurationException(t);
    }
  }
}

<server class="org.jpos.q2.iso.QServer" logger="Q2" name="server-simulator">
    <attr name="port" type="java.lang.Integer">20801</attr>
    <attr name="maxSessions" type="java.lang.Integer">500</attr>
    <channel class="org.jpos.iso.channel.ASCIIChannel" packager="org.jpos.iso.packager.GenericPackager"
             logger="Q2" name="server-channel">
        <property name="packager-config" value="cfg/iso87ascii.xml" />
    </channel>
    <request-listener class="id.co.pandz.rest_jposs.RequestListener" logger="Q2">
        <property name="space" value="TransactionSpace"/>
        <property name="queue" value="TransactionQueue"/>
        <property name="timeout" value="30000"/>
    </request-listener>
</server>

<qrest name="restserver" class='id.co.pandz.rest_jposs.RestServer' logger='Q2'>
    <property name='port' value='8080' />
    <property name='queue' value='ISO.TXNMGR' />
    <property name="TLS" value="false" />
    <property name="server-auth" value="false" />
    <property name="client-auth" value="false" />

    <property name="logLevel" value="debug" />

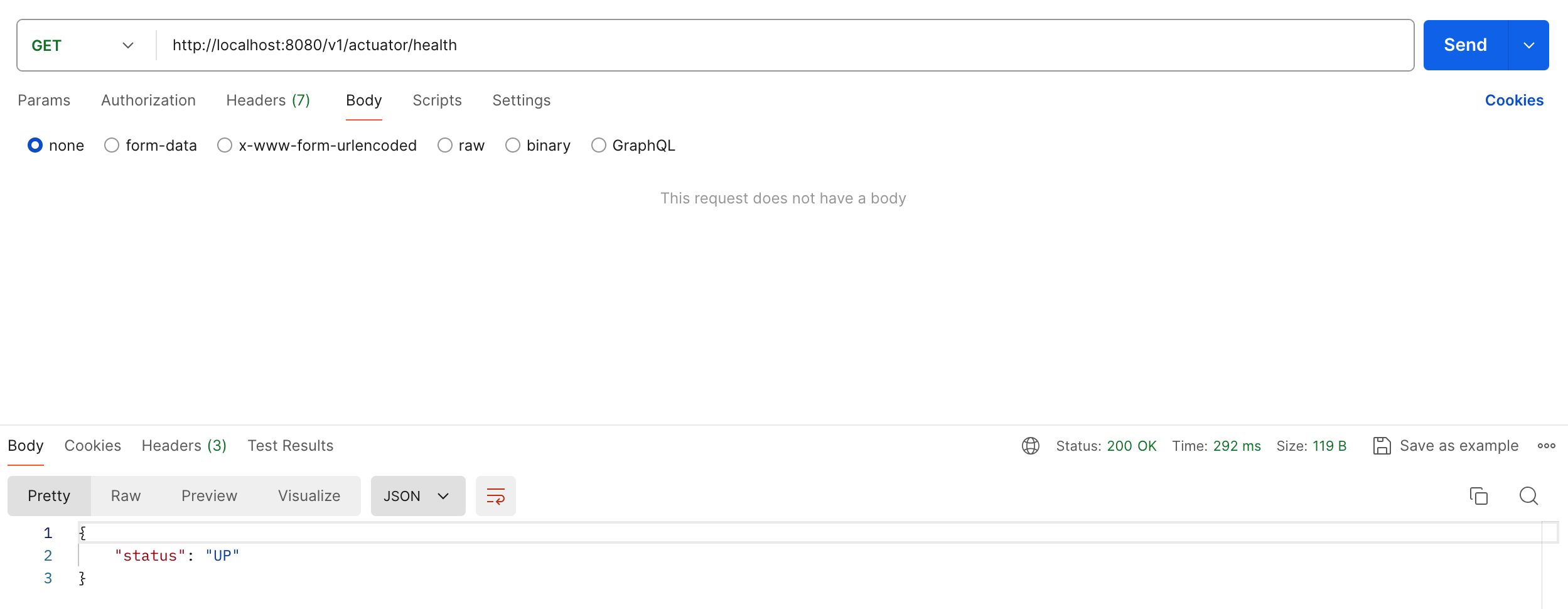

    <route path="/v1/actuator/health" method="GET" queue="ISO.TXNMGR" />

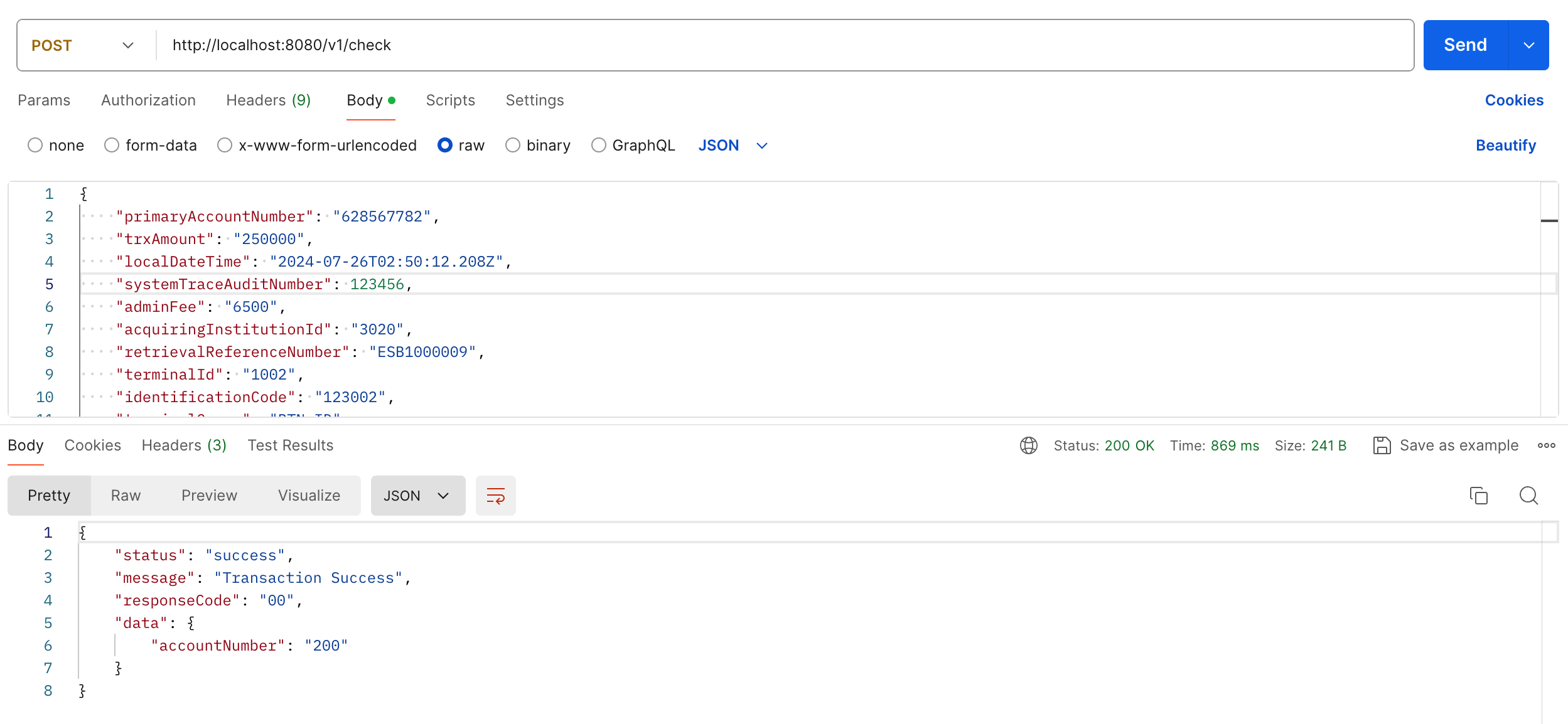

    <route path="/v1/check" method="POST" queue="ISO.TXNMGR" />
</qrest>

<txnmgr name="iso.default" class="org.jpos.transaction.TransactionManager" logger="Q2">
    <property name="queue" value="ISO.TXNMGR" />
    <property name="sessions" value="10" />
    <property name="max-sessions" value="512" />
    <property name="debug" value="false" />

    <participant class="id.co.pandz.rest_jposs.Router">
        <route path="/v1/check" method="POST" name="Check"/>
        <route path="/v1/actuator/health" method="GET" name="HealthCheck"/>
    </participant>

    <group name="Check">
        <participant class="org.jpos.qrest.ExtractJSONRequest" />
        <participant class="id.co.pandz.rest_jposs.participant.JsonRequestValidator">
            <property name="code" value="check" />
            <property name="messageConfigurator" value="msgconfig" />
        </participant>
        <participant class="id.co.pandz.rest_jposs.participant.ISOMsgBuilder">
            <property name="code" value="URL_SEGMENT{last}" />
            <property name="messageConfigurator" value="msgconfig" />
        </participant>
        <participant class="id.co.pandz.rest_jposs.participant.SendIsoRequest">
            <property name="muxName" value="iso.server"></property>
            <property name="timeout" value="60000"></property>
            <property name="rcMapper" value="rcmapper"></property>
        </participant>
        <participant class="id.co.pandz.rest_jposs.participant.JsonResponseBuilder">
            <property name="code" value="URL_SEGMENT{last}" />
            <property name="messageConfigurator" value="msgconfig" />
            <property name="rcMapper" value="rcmapper"></property>
        </participant>
    </group>

    <group name="HealthCheck">
        <participant class="id.co.pandz.rest_jposs.participant.JsonResponseBuilder">
            <property name="code" value="healthcheck" />
            <property name="messageConfigurator" value="msgconfig" />
            <property name="rcMapper" value="rcmapper"></property>
        </participant>
    </group>

    <participant class="org.jpos.qrest.SendResponse" logger="Q2">
        <property name="content-type" value="application/json"></property>
    </participant>

  <
</txnmgr>

<txnmgr name="transactionManager" logger="Q2" class="org.jpos.transaction.TransactionManager">
  <property name="space" value="TransactionSpace" />
    <property name="queue" value="TransactionQueue" />
    <property name="sessions" value="1" />
    <property name="max-sessions" value="10" />
    <property name="debug" value="false" />
    <participant class="org.jpos.transaction.participant.SendResponse" logger="Q2" />
</txnmgr>

@SpringBootApplication
public class RestJpossApplication {
  public static void main(String[] args) {
    Q2 appServer = new Q2(new String[] {"-r"});
    appServer.start();

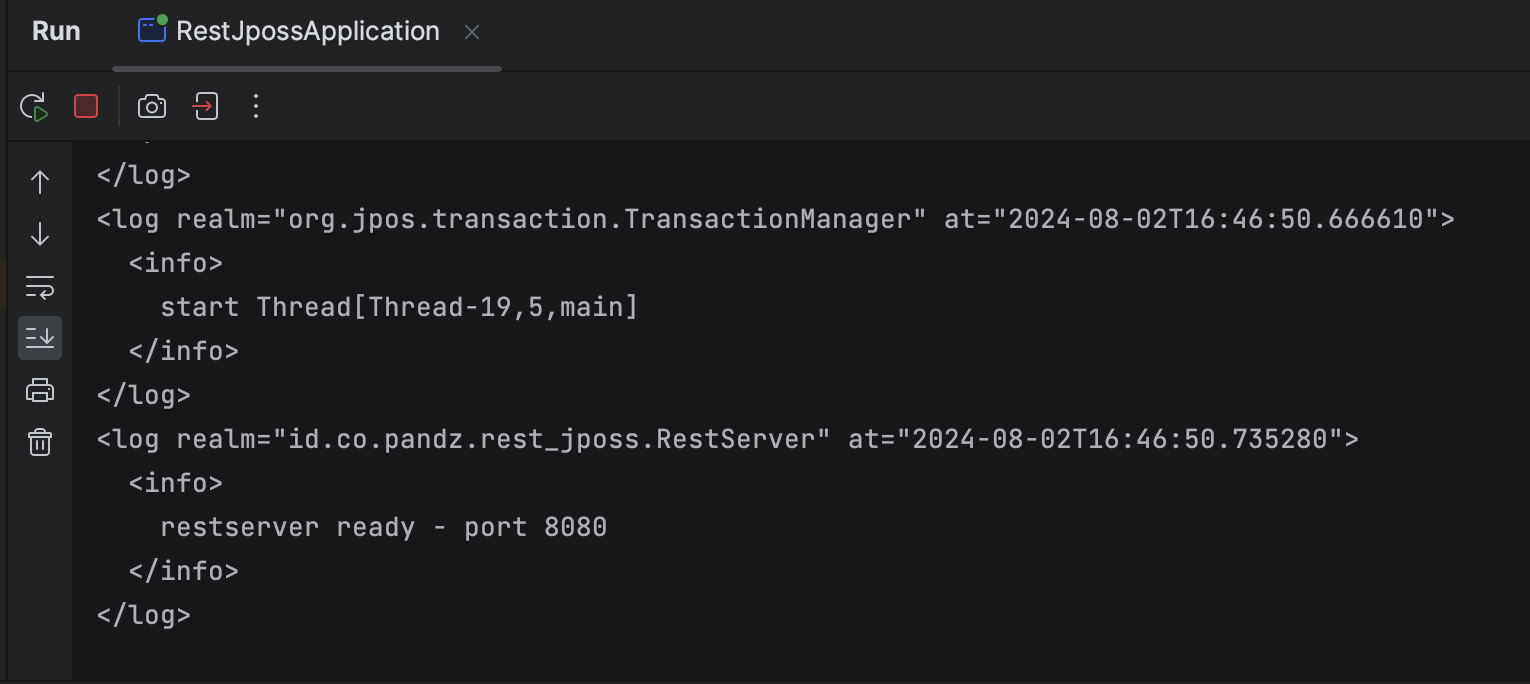

    System.out.println("ISO8583 server started...");
  }
}
